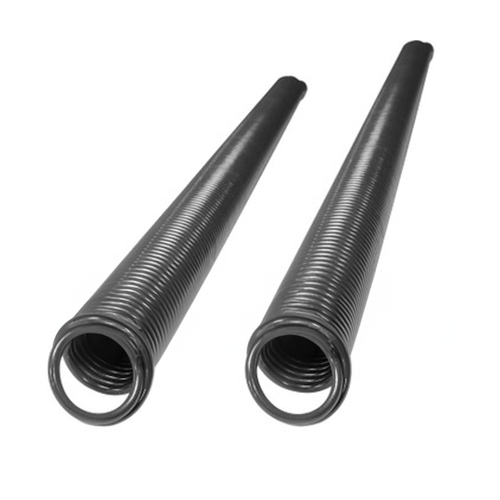

Garage Door Extension Springs 36" X 54" for 9' High Doors

Use a pair of our 36-in. by 54-in. garage door extension springs from Action Industries to replace worn or non-working spring on a 9-ft. high residential garage. These part no. 36-54 extension springs, sold in pairs, counterbalance the weight of a closing or opening garage door for safer operations.

Product Highlights:
    •    36-54
    •    Sold in pairs
    •    Replacement springs (2 required) for 9-ft. high door
    •    For door weights of 90 lbs. to 280 lbs.
    •    Makes it easier for torsion springs and opener to open/close garage door
    •    Uses a sheave pulley and garage door cable assembly to transfer weight of door to springs
    •    Initial tension holds the door open
    •    Springs extend as door closes, retract as door opens
    •    Confirm weight of door
    •    Springs are color coded by weight

Our #36-54 extension springs are available for garage door weights ranging from 90 lbs. to 280 lbs. Garage door extension springs are color coded to distinguish their weights.

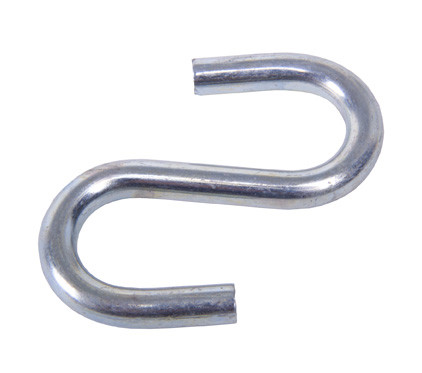

To install your replacement springs, one end of the springs is installed with an S-hook to the stationary hangar angle that supports the garage door tracks, while the other end of the springs hooks to a safety cable-and-pulley assembly that connects to the garage door. When the garage door is in the open position, the initial spring tension holds it in place on the horizontal track.

The pull weight of an extension spring is determined by the color code found on the end of the spring. Once you know that, measure the height of the door. If you cannot determine the color code for the springs, you must weigh the door.

The Door and Access Systems Manufacturers Association (DASMA) has established color codes for extension springs by weight.

DASMA Spring Color Codes: EXTENSION SPRINGS:
    •    40 lbs - BLUE
    •    50 lbs - RED
    •    60 lbs - BROWN
    •    70 lbs - ORANGE
    •    80 lbs - GOLD
    •    90 lbs - LIGHT BLUE
    •    100 lbs - TAN
    •    110 lbs - WHITE
    •    120 lbs - GREEN
    •    130 lbs - YELLOW
    •    140 lbs - BLUE
    •    150 lbs - RED
    •    160 lbs - BROWN
    •    170 lbs - ORANGE
    •    180 lbs - GOLD
    •    190 lbs - LIGHT BLUE
    •    200 lbs - TAN
    •    210 lbs - WHITE
    •    220 lbs - GREEN
    •    230 lbs - YELLOW
    •    240 lbs - BLUE
    •    250 lbs - RED
    •    260 lbs - BROWN
    •    270 lbs - ORANGE
    •    280 lbs - GOLD
    •    290 lbs - LIGHT BLUE
    •    300 lbs - TAN
