BEA 433 MHz 1-Button Hard-Wired Digital Transmitter w/Flag Connectors 9-Volt Battery 10TD433PB9V

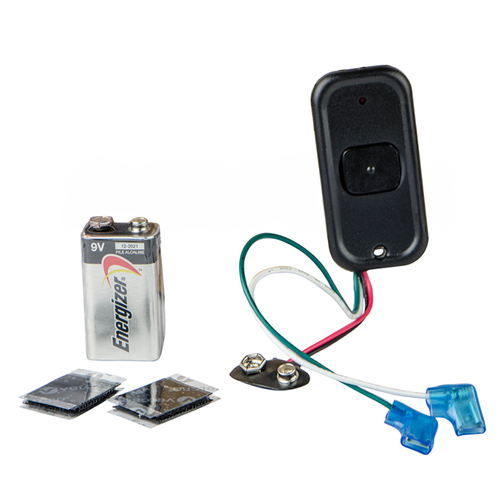

The BEA 10TD433PB9V is a 433 MHz, 1-button digital transmitter designed for secure wireless activation of automatic doors. Each activation generates a unique rolling code signal to ensure reliable communication and prevent interference. A built-in LED indicator confirms signal transmission. This transmitter is powered by a standard 9-volt battery and features hard-wired flag connectors for straightforward installation. It is compatible with all standard automatic door remote applications but is not compatible with the 10BOXJAMBST Jamb Style Surface Mount Box.

Part of the BEA 433 MHz Series, the 10TD433PB9V can be paired with receivers supporting up to 100 programmed transmitters. Installers can configure individual or group code deletion, select delay or no-delay programming for vestibule sequencing, and choose toggle or pulse mode via DIP switch. Relay hold time can be set at 0.5 or 10 seconds, offering flexibility for different entryway applications.

Specifications

• Frequency: 433 MHz
• Transmitter type: 1-button, hard-wired with flag connectors
• Battery: Standard 9V
• Signal: Rolling code with LED activation indicator
• Receiver capacity: Up to 100 transmitters
• Programming: Delay/no-delay for vestibule sequencing
• Modes: Selectable toggle or pulse (via DIP switch)
• Relay hold times: 0.5 or 10 seconds
• Radio output power: -28.7 dBm (TX)
• Power consumption: 3mA (TX), 30mA (RX)
• Receiver input voltage: 12–24 VAC/DC
• Contact rating: 1.0A @ 30 VDC, 0.5A @ 125 VAC, 0.3A @ 60 VDC
• Operating temperature: 14°F to 131°F (-10°C to 55°C)
• Dimensions (Transmitter): 2-3/4" x 1-3/8" x 9/16" (70mm x 35mm x 14mm)
• Dimensions (Receiver): 2-3/4" x 2-1/8" x 1" (70mm x 55mm x 25mm)
• Certifications: FCC, IC
