EMX Drive-Thru Alert Kit Audio Visual Chime Strobe

SKU:
DAK-2ULTMVP
Write a Review
  • Usually Ships 4 to 7 Business Days
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

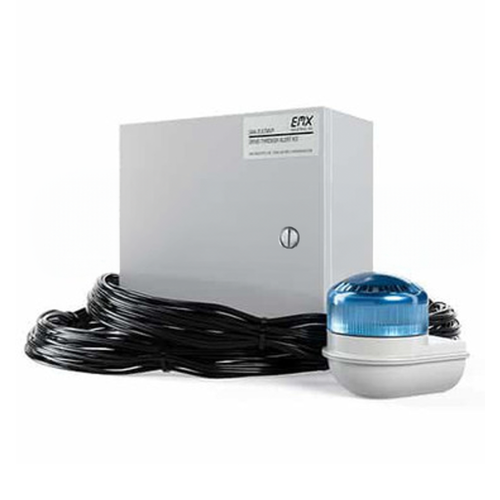

EMX’s DAK-2ULTMVP from Action Industries comes complete and ready to install as the perfect all in one system for dual-zone vehicle detection and audio/visual alerts. The drive-thru alert kit provides audio and visual indications to team members that need to know when a customer’s vehicle has pulled into the drive-thru lane. Each DAK-2ULTMVP kit comes with a pre-wired enclosure with all components pre-installed, and the LED beacon and sounder is pre-programmed. No additional assembly required. The EMX dual zone alert kit works in a wide variety of applications that require two detection zones, including banking, car washes, fast-food restaurants, and more. Terminal blocks inside the panel are available for easy connection of incoming power (120 VAC) and wire connections to the PR-46 loops and LED beacon.

Kit Contents:

  • 2 ULT-MVP multi-voltage vehicle detectors - automatically adjust from 12 VDC up to 240 VAC to fit any installation. Features ULTRAMETER display that indicates the appropriate sensitivity setting to detect a vehicle near loops.

  • 2 PR-46-100 ready-to-use Preformed Loops with 100 ft. lead that can be shortened or spliced to extend as needed. Suitable for all installations - saw cut, concrete, and tar.

  • 1 120VAC to 24 VDC Power Supply

  • 1 SLM500B LED Beacon and Sounder with three separate levels of alarm. Channel 1 - simulated strobe. Channel 2 - audible tone and simulated strobe. Channel 3 - steady light and second, unique tone. Volume of tones can be adjusted.

Features:

  • Complete pre-wired and pre-programmed dual zone drive-thru alert system

  • Sends audio and visual alerts when vehicles are detected

  • For use in drive-thru applications with two lanes

  • All vehicle detectors and LED beacon are pre-programmed

  • No additional assembly or programming required

  • Two-in-one detection and alert system
