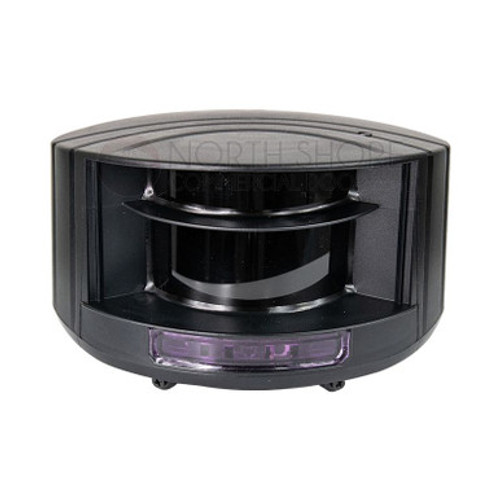

EMX LRS-C1 Motion and Presence Vehicle Detector Control Unit

SKU:
LRS-C1
Write a Review
  • Usually Ships 4 to 7 Business Days
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

The LRS-C1 Motion and presence vehicle detector control unit features advanced 3-axis, magnetoresistive sensing technology. The sensor measures Earth’s magnetic field and responds to disturbances caused by ferrous or metallic objects. The LRS-C1 combines this exciting new technology with a field proven hardware platform to produce a high sensitivity, compact, and cost-effective solution for reliable vehicle detection. Three sensing elements provide magnetic field measurement in the X, Y, and Z axes, improving detection sensitivity.

The small size of the LRS allows for easy installation in pavement with a single saw cut, unlike the vast majority of vehicle detection hardware. It provides savings on labor and materials when compared to multiple cuts and corner reliefs required for the installation of classic inductive loops. The LRS flat pack (FP) and direct burial (DB) sensors are also suitable for above ground installations, making the system ideal for use in confined areas or hidden in non-ferrous architectural components for security purposes.

Features:

  • LRS-C1 Loop Replacement System Controller

  • Required to program and recalibrate LRS sensors

  • Only a single saw cut needed for installation

  • 3-axis magnetoresistive sensing technology

  • Magnetic field sensing in the X, Y, and Z axis

  • Works with LRS Flat Pack and LRS Direct Burial sensors sold separately from Action Industries

  • Detects ferrous objects only and ignores pedestrians

Specs:

  • Detection Range: 5 ft. radius

  • Response Time: 125 ms

  • Outputs: SPDT Relay - fail safe in the event of sensor failure or power loss

  • Output Current Rating: Relay: 1 A @ 24-120 VDC

  • Connection: 10 position screw terminal

  • Operating environment: -40º to 82ºC

  • Housing Material: ABS (plastic)

  • Environmental Rating: IP30

  • Power: 12-30 VDC and 24 VAC

  • Current Draw: 40 mA (max)

  • Supply Protection: Reverse polarity and fuse protected

  • Dimensions (L x W x H): 3 inches x 0.9 inch x 2.75 inches

  • Weight: 0.15 lbs
