Product Description

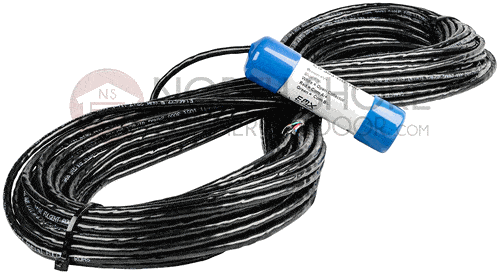

The EMX LRS-DB-100 Direct Burial Sensor uses the Earth's magnetic field to detect vehicles and signal the control panel. Designed specifically for use with EMX LRS-C1 Vehicle Detector Control Unit. When a ferrous object, like a car, disrupts the magnetic field being measured by the sensor, the device signals the control panel to open or close the gate or door. The sensor is suitable for above or below-grade installations and can be buried in either a vertical or horizontal orientation.

The compact sensor size allows for economical installation options. A single small saw cut is all that is need for below-grade installations, saving time and money. The sensor is designed to be sensitive, yet selective, reducing false alarms and only signaling when a vehicle is present. The sensor may be programmed to only activate when the vehicle triggering the sensor comes to a complete stop, further reducing false activations.

The EMX LRS-DB-100 Single Cut Direct Burial Magnetoresistive sensor was formerly known as the CarSense CS303-DB-100 that worked with the CarSense CS303-C-1 (now known as the LRS-C1 Control Unit).

Features:

Easy, low cost installation
Small size of the detector allow for easy installation in pavement
Rugged sensor is also suitable for above grade installations
Direct Burial Sensor w/100 ft lead wire
Designed specifically for use with EMX LRS-C1 Vehicle Detector Control Unit

Loopless Magnetoresistive Vehicle Detector
Model	Operating Range	Output	Power	Channel	Housing	Rating	Connection	Detect-on-Stop^™	ULTRAMETER^™ Sensitivity Display	Installation	Detection Material	Mounting	Detection Mode	Features
Control Unit (required to program sensors)
LRS-C1	—	Relay and discrete	12-30 VDC 24 VAC	Single	ABS	IP30	11 position screw terminal	Yes	Yes	In operator	—	Above ground	Presence and motion	Pulse on entry/exit
Sensor Options
LRS-FP	5 ft. radius (1.5m) 10 ft. dia. (3m)	Discrete	12-30 VDC	Single	Polyamide	IP69K	5 wire	Yes	—	Single saw cut	Ferrous metal	Below ground	Presence and motion	Retains programmed settings
LRS-DB	5 ft. radius (1.5m) 10 ft. dia. (3m)	Discrete	12-30 VDC	Single	PVC	IP69K	5 wire	Yes	—	Core drill, Clamp	Ferrous metal	Above or Below ground	Presence and motion	Retains programmed settings
Accessory Unit

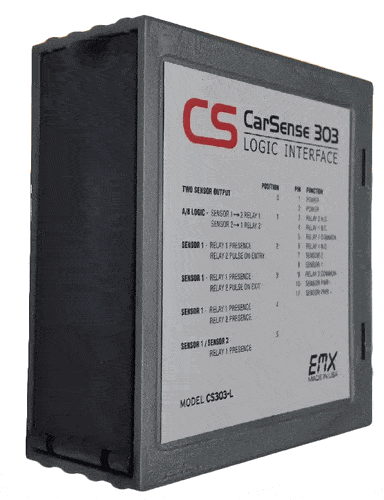

LRS-LC	20 ft. (6m) or more with use of multiple FP or DB	Dual relay	12-30 VDC 24 VAC	Dual	ABS	IP30	11-pin	Yes	—	In operator	—	Above ground	Presence and motion	Provides extended detection, A/B logic and more
