EMX IRB-325 Infrared Thru Beam Photoeye

SKU:
IRB-325
Write a Review
  • Usually Ships Following Business Day
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

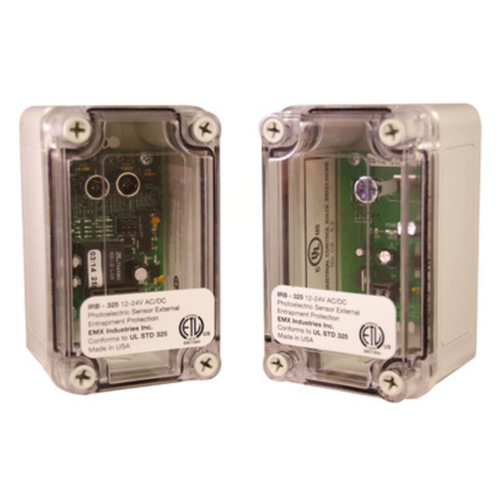

EMX’s IRB-325 Infrared Thru Beam Photoeye kit from Action Industries includes the transmitter, receiver, and protective hoods for a complete installation on gates and garage doors. The IRB-325 is an external entrapment protection device, type B1 non-contact sensor that detects vehicles for automatic barriers. This thru-beam photoeye is powered by 12 VDC to 24 VAC and has an operating range of up to 65 ft. This photoeye is certified UL325-2018 compliant with operators that require NC monitoring. The IRB-325 comes with two powder coated steel hoods that protect against environmental exposure and accidental contact damage from vehicles and other equipment.

Features:

  • IRB-325 Infrared Photoeye Kit

  • Thru beam configuration

  • UL325-2018 compliant with operators requiring NC monitoring

  • 6 to 65 ft. operating range

  • NEMA 4X enclosure provides required durability for safety applications

  • Powered by 12 VDC to 24 VAC

  • Powder coated steel hoods protect against the elements and accidental vehicle damage

  • Operating temperature: -40 to 170°F

  • Dimensions:

    • Height: 5.03”

    • Width: 3.06”

    • Depth: 3.02”

Product Manual
