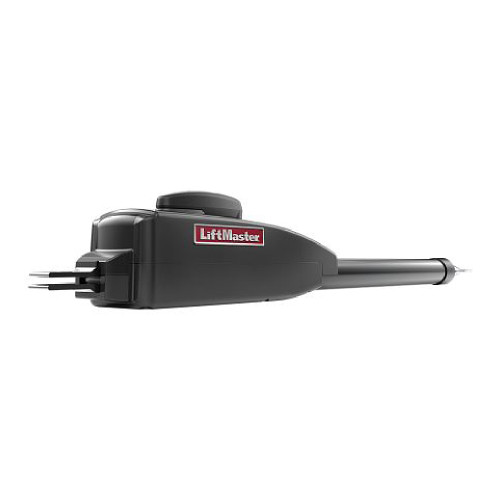

Liftmaster LA400 Residential DC Linear Gate Operator Package

LiftMaster’s 24VDC Residential Linear Actuator (LA400PKGULMC) is for use on vehicular passage gates and is not intended for use in pedestrian passage gates. This operator has the convenient technology MyQ® that lets you securely control and monitor the LA400PKGULMC from anywhere and get activity notifications through the MyQ® app. Security+2.0® is also included, which safeguards access to your property with an encrypted signal to offer an extended range with Security+2.0.

Customization is available with programmable auxiliary relays that easily add additional features, such as warning lights/alarms. Rated for gates up to 16ft. in length or weighing up to 850 lbs.

Specifications:

• Power 120V Single Phase (Standard control box).

• Accessory Power 24VDC 500mA output. Switched and unswitched power.

• Monitored Safety Inputs 3 Main Board, 3 Optional Expansion Board.

• Temperature Specifications -4°F (-20°C) to 140°F (60°C).

• UL Usage Classification I, II, III, and IV.

• Gate Travel Speed 90-degree opening in 15-17 seconds.

Construction:

• P3 Motor® 12VDC continuous-duty motor.

• Operator Duty Rating 100 cycles per day.

• Worm Gear Reduction Precision machined all-metal gear drive.

• Operator Weight Actuator arm 19 lbs. Standard control box 13 lbs.

• Includes (2) 7Ah batteries
