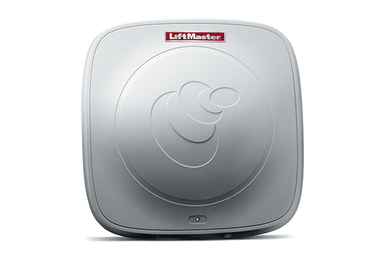

LiftMaster LMSC1000 Long Range Vehicle Access-Card Reader

LiftMaster LMSC1000 Long Range Vehicle Access-Card Reader | The LiftMaster LMSC1000 is an outdoor RFID card security console designed for vehicle access. This easy-to-install wall or post-mounted reader services entire facilities, parking garages, gated communities, and secured properties. It integrates seamlessly with LiftMaster's CAPXL and CAP2D PPWR Passport Receiver, as well as the CSW24U 24 VDC Commercial Swing Gate Operator and CSL24UL and HCTDCUL systems, allowing access through encrypted digital codes. It can operate swing or sliding gates from a distance of 20-30 feet using either the LiftMaster LMUNTG Glass-Mount Parking Pass Tag (50 ct.) or the LiftMaster LMHNTG Rearview Parking Access Hang-Tag (25 ct.). Users can access the system through LiftMaster's Smart-Entry myQ Business system or program directly into the LiftMaster cloud-based access control device. This square disc RFID reader is designed for outdoor use, featuring a Wiegand-interface module and a simple paired-cable hardwired power plug, making it an efficient and reliable solution for gated vehicle access. The reading range can be finely calibrated for increased sensitivity to the Rear-View hanger or 1-Mount Optical Tag.

PRODUCT HIGHLIGHTS | TECHS | SPECS

• RFID/prox-card reader hub integrates to LiftMaster Access Portals or by programming directly to Commercial-grade gate operators (below) for efficient vehicle access in large-scale parking settings
• Compatible management devices
• (CAPXL)
• (CAP2D)
• Liftmaster PPWR Passport Receiver

• LiftMaster CSW24U 24 VDC Commercial Swing Gate Operator

• CSL24UL
• HCTDCUL
• UL 294 tested
• 20 to 25 ft. read-range for LiftMaster LMUNTG Dual-Purpose 1-Mount Vehicle RFID Tag (Coming Soon) or LiftMaster LMHNTG Rearview Mirror RFID Hang Tag (Coming Soon) and field tested at up 50 ft.
• ***RFID tags/passive transmitter devices are sold separately and can be found (URL TK) (URL TK)
• 26-bit Wiegand Interface console
• Encrypted binary protocol signal
• Helpful Programming/Testing/Function tri-color LEDs on both reader face and Wiegand console
• Dimensions
• 10.25 inch W
• 10.25 inch L
• 1.25 inch D
• LiftMaster KSC12-3A Power Adapter RFID 12V, 3A included
• ***Requires socket/outlet in weatherproof enclosure
• Includes 2-way adjustable mounting bracket w/ U-bolts
