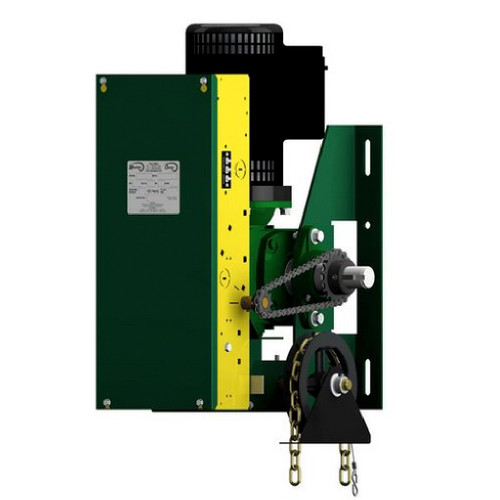

Manaras Opera MGH Commercial Garage Door Opener

Action Industries carries the Manaras MGH operator, a super-duty product capable of delivering 25 cycles per hour performance, and more than 80 cycles per day. Super-duty openers are designed for industrial use and may be used on standard, high or vertical lift sectional doors, rolling doors or grilles. The Opera MGH is available with your choice of 3 motor sizes to suit your needs.

The Opera MGH is designed with businesses in mind. The device may be wall, hood or shelf-mounted on either side of a door, and a chain hoist is included for manual operation in the event of a power failure. A floor-level engaging device and electrical cut-out system are included for safe operation. Additional options such as the new Electronic Control Board (BOARD 070) and electrical controls are also available.

The Opera MGH super-duty industrial garage door opener is the perfect choice any business. Its compact design and smooth operation will allow you to open and close any door as needed, making it easy to receive shipments, send products and access buildings all day long.

Product Highlights:

• Part Number: OPERA-MGH
• Very heavy SUPER-duty garage door operator
• 3 motor sizes available
• Compact design and smooth operation
• Electrically activated drum-band brake
• Chain hoist included for emergency manual operation in the event of a power failure
• Floor-level engaging device and electrical cut-out system for safe operation
• Electrically activated drum brake
• Optional features include the new Electronic Control Board (BOARD 070) and electrical controls
• Many mounting options for easy customization
• Accu-cam feature for precise and easy adjustments
• Corrosion protection for longer life
• Electrical enclosure to protect important components
• Includes a two-year warranty

• Supply Voltage: 115, 230 Vac single-phase, 208, 460, 575 Vac three-phase
• Control Voltage: 24 Vac class 2 transformer, 2 amp fuse type ACG
• Motor: Continuous duty ½, ¾, 1, 1 ½, horsepower
• Operator Output Speed: 43 RPM
• Net Weight (Operator only): 137 Lbs. (62 Kg)
• Standard Wiring Type: C2 (momentary contact to open/stop and constant-pressure-to-close)
• Application: Very heavy duty worm gear for sectional doors, rolling doors and grilles
• Duty: 25 cycles/hour or >80 cycles/day maximum
