Manaras

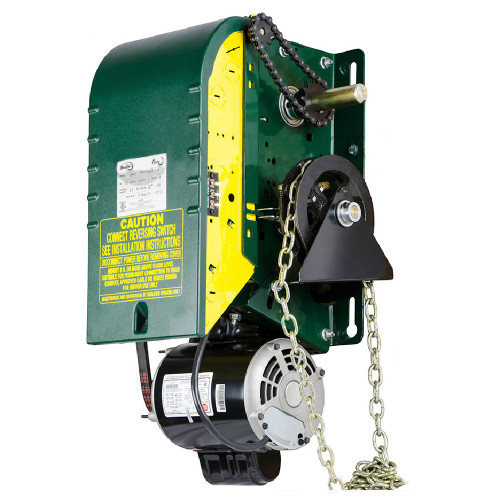

Manaras Opera Model H
- Usually Ships 4 to 7 Business Days
- availability:
- available
Product Description
The Manaras Opera H garage door jackshaft opener is offered by Action Industries is a great fit for your heavy-duty commercial needs. This operator is ideal for high and vertical lift sectional doors or rolling doors and grilles. It comes with a handy feature called the "Hoist-a-matic" which simplifies installation and operation. You can choose to order this opener with or without electrical controls for monitored external entrapment protection devices.
Product Highlights:
- Part Number: OPERA-H
- 60 Hz high-starting torque, continuous-duty, single-phase capacitor or three-phase motor
- Heavy-duty jackshaft operator for commercial & industrial
- Ideal for high and vertical lift sectional doors or rolling doors and grilles
- Hoist-a-Matic feature simplifies installation and operation
- Can be ordered with or without electrical controls for monitored external entrapment protection devices
- Friction-type clutch positioned on input shaft
- Mechanical brake
- Rotary-type oil impregnated steel cams
- Floor-level disconnect for manual operation
- Electrical components are protected in a NEMA 1 enclosure
- Accu-cam feature for quick one-handed adjustments
- Baked-on, long-lasting enamel finish for corrosion protection
- Includes a two-year warranty
- Supply Voltage: 115, 230 Vac single-phase, 208, 460, 575 Vac three-phase
- Control Voltage: 24 Vac class 2 transformer, 2 amp fuse type ACG
- Motor: Continuous duty ½, ¾, 1 horsepower
- Operator Output Speed: 41 RPM
- Net Weight (Operator only): 86 Lbs. (39 Kg) for ½ HP 115 V Opera-H model
- Standard Wiring Type: C2 (momentary contact to open/stop and constant-pressure-to-close)
- Application: Heavy duty for sectional doors, rolling doors and grilles
- Duty: 25 cycles/hour or 100 cycles/day maximum
- Supply Voltage: 115, 230 Vac single-phase, 208, 460, 575 Vac three-phase
- Control Voltage: 24 Vac class 2 transformer, 2 amp fuse type ACG
- Motor: Continuous duty ½, ¾, 1 horsepower
- Operator Output Speed: 41 RPM
- Net Weight (Operator only): 96 Lbs. (44 Kg)
- Standard Wiring Type: C2 (momentary contact to open/stop and constant-pressure-to-close)
- Application: Ultra high-end heavy duty v-belt drive for sectional doors, rolling doors and grilles
- Duty: 25 cycles/hour or >100 cycles/day
Maximum Area in Square Feet (general guideline)
