EMX

EMX NIR-50-325 Retro-Reflective Photoeye with Mounting Brackets

SKU:
NIR-50-325
Write a Review
  • Usually Ships Following Business Day
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

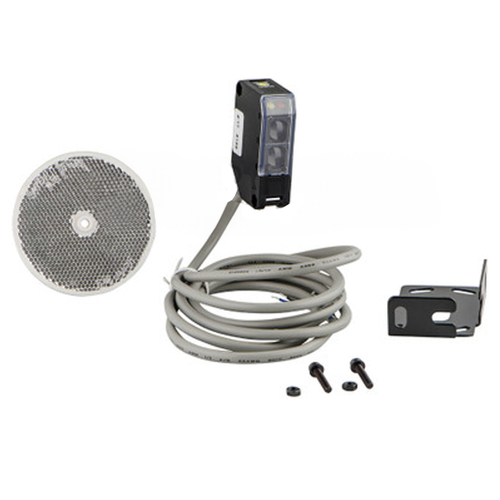

EMX’s NIR-50-325 is an extended range retroreflective photoeye sensor for overhead doors, gates, and barriers. This photoeye is UL325-2018 compliant, features an internal 10K resistor for monitored operation, and has a 50 ft. operating range. Not compatible with operators that use NO and COM (non-10k) monitoring methods. Equipped with flexible voltages, compact design, and LED indicators make the NIR-50-325 easy to install. The NIR-50-325 kit from Action Industries includes: photoeye with hood, reflector with hood, and mounting bracket with hardware.

Features:

  • NIR-50-325 Retroreflective Photoeye Kit

  • UL325-2018 compliant

  • Flexible voltage: 12-30 VDC, 24-30 VAC

  • 50 ft. operating range

  • NC and 10K monitoring

  • Sensitivity adjustment

  • 2 LED indicators

  • Lead wire: 6 feet

  • Watertight package for reliable outdoor installation

  • IP66 enclosure

  • Wide operating voltage

  • Kit includes: photoeye with hood, reflector with hood, and mounting bracket

  • Dimensions:

    • Height: 2.5”

    • Depth: 1.5”

    • Width: 0.75”
