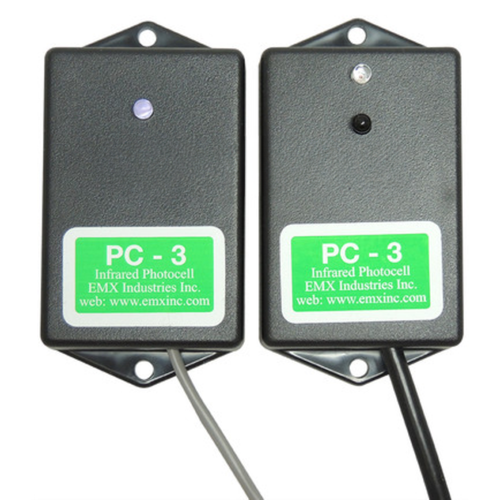

EMX PC-3 Infrared Thru-Beam Modulated Photoeye

SKU:
PC-3
Write a Review
  • Usually Ships Following Business Day
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

EMX’s PC-3 infrared modulated photoeye is an easy-to-install, cost effective safety sensor device for garage doors and rolling doors. This thru beam photoeye uses one transmitter and one receiver to detect obstructions in the way of a closing garage door. When the infrared beam is interrupted, the relay common and normally open contacts in the receiver are closed. The LED indicator is lit when the PC-3 receiver is not aligned or when the beam is interrupted. The PC-3 works with any control board that accepts dry contact in the safety input. 30 ft. detection range and 24 degree wide detection angle.

Features:

  • PC-3 Infrared Modulated Photo Eye

  • Thru beam configuration

  • LED alignment indicator simplifies installation

  • No calibration or sensitivity adjustments needed

  • For residential garage doors or rolling doors on mini warehouse or self storage installations

  • Wide 24 degree sensing angle for increased reliability

  • 30 ft. operating range

  • Indoor or protected outdoor operation

  • Works with any control board that accepts dry contact in the safety input

  • Supervised relay output provides an “open” signal in case of power failure

  • Non-reflective thru beam configuration is not affected by shiny surfaces
