- 4-sided detection laser-window to sense cars and activate gates; fasten to post, power up and configure; <b>no cutting or re-pouring concrete</b>
- Usually Ships Following Business Day
BEA
LASER SCANNER FOR GATE & BARRIER APPLICATIONS
- 4-sided detection laser-window to sense cars and activate gates; fasten to post, power up and configure; <b>no cutting or re-pouring concrete</b>
- Usually Ships Following Business Day
- brand-url:
- /brand/bea/
- brand-name:
- BEA
- availability:
- available
Product Description

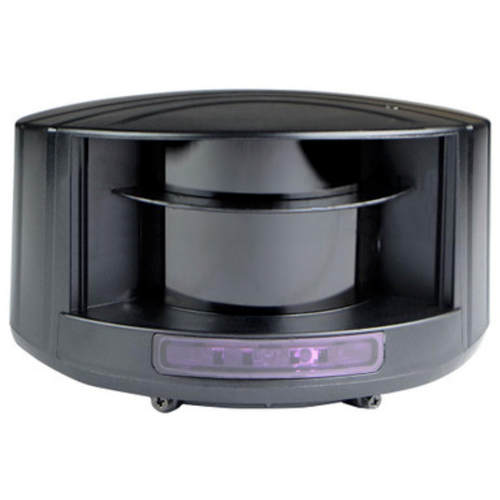

The BEA LZR-H100 Laser Scanner is a professional-grade sensor designed for gate and barrier access control. Using advanced time-of-flight laser technology, it provides precise motion and presence detection without the need for pavement cuts, reducing installation time and complexity.
Key Features
- Detection range up to 32 ft x 32 ft for reliable vehicle monitoring
- Optimized for installation 16" above ground, facing oncoming traffic
- Four laser detection curtains create a 3D field for accurate detection
- Two integrated relays support gate operation, access devices, or warning indicators
- Durable NEMA 4 / IP65 enclosure for outdoor environments
- Wide operating temperature range: -22°F to 140°F powered
- Compact housing: 3-5/8" W x 2-3/4" H x 5" D
Specifications
- Supply voltage: 10–35 VDC at sensor terminal
- Unpowered temperature range: 14°F to 140°F (-10°C to 60°C)
- Programming requires BEA 10REMOTE Universal Remote Control (sold separately)
Included in Kit
- LZR-H100 sensor
- Adjustable mounting bracket and hardware
- 30' connection cable
- Hex key and screw pack
- Mounting template and reference sticker
