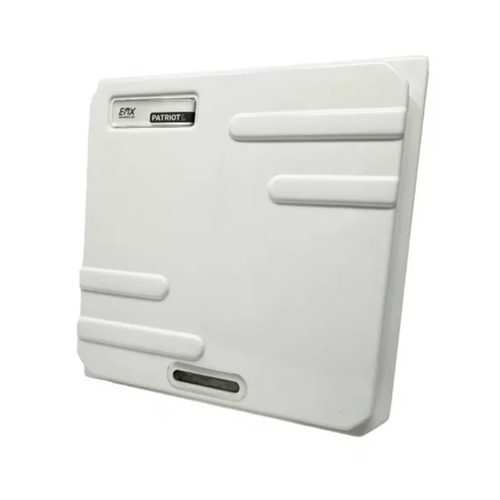

EMX PATRIOT-E Circular Polarized UHF RFID Reader

Product Description:

Introducing the Patriot-E, a cutting-edge RFID reader designed for seamless access control. With an impressive read range of 18-25 ft. (5.4-7.6 m), it supports multiple communication protocols including RS232, RS485, and OSDP, ensuring compatibility with diverse systems. The LED indicator provides clear status updates, while the variable 12 to 48VDC input voltage offers flexible power options.

What's in the Box:

- Reader
- Power Supply
- Mounting Bracket
- Test Tag

Software-Adjustable Features:

- dBm levels adjustable
- Controllable LED timing (on/off)
- Controllable buzzer (on/off)
- Buffer timing
- Wiegand timing
- Controllable relay (on/off)
- Isolate facility codes

PATRIOT E Specs:

- Model Name: Patriot – E
- Frequency: 902-928 MHz
- Max RF Power: 30dBm (1 Watt)
- Average Read Range (site and tag dependent): 18-25 feet
- Antenna: Circular Polarized 7.5 dBi (Gain)
- LED Indicator: Yes
- Sounder Indicator: Yes
- Supply Voltage: 9-48VDC
- Included Power Supply: 110/240AC to 12VDC
- Included Mounting Bracket: Yes
- Max Current: 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
- Adjustable read range: Yes
- Outputs to Controller: Wiegand, RS-232, Relay Contact, RS-485 / OSDP
- Communication Options for Reader Configuration: RJ45 Ethernet Connector, WiFi
- Reader Capab: Standard Credential Tags: Window Tag, Hang Tag
- Bluetooth Credential Capable: Optional
- Extra Feature: Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller
- Arming Input Capable: Yes
- FCC Approval: Part 15
- Operational Temperature: -20°C to +70°C
- Size: 8.78″ x 7.87″ x 2.36″
- IP Rated: YES-IP65
