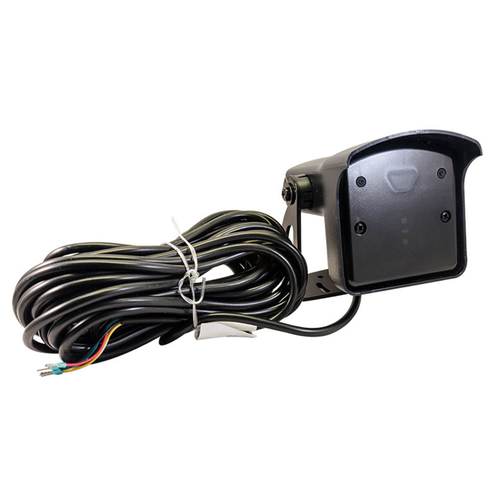

BEA's Falcon XL Gate and Garage Door Motion Detector for low mounts

Write a Review
  • Usually Ships Following Business Day
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

The BEA Falcon XL is a gate and garage door Motion Detector designed for extra low mounting installations. BEA’s Falcon uses a unidirectional sensor that uses microwave frequencies to sense objects in front of an industrial door or commercial door. This version of the Falcon Motion Detector is intended for use on smaller doors between 6.5 and 11.5 feet. The Falcon XL allows for uni or bi-directional sensing, as well as the capability of opening a door when traffic moves away from the sensor. The Falcon is ideal for automatic industrial doors, vehicle gates/barriers, vehicle detection, and any industrial application where motion detection is required. Unlike other sensors, the Falcon XL distinguishes between vehicle and pedestrian movement in the detection area.


  • Microwave Gate and Door Motion Detector

  • Designed for extra low mounts between 6.5 ft. and 11.5 ft.

  • Part of BEA’s Falcon Family of sensors

  • Uni or bi-directional sensing

  • Differentiates between vehicular and pedestrian traffic


  • Technology: Microwave Doppler Radar

  • Radiated Frequency: 24.150 GHz

  • Transmitter Radiated Frequency <20 dBm EIRP

  • Radiated Power Density: <5 mW / cm2

  • Detection Mode: Motion

  • Detection Zone: 13’ x 6-1/2‘ @ 8-1/2‘

  • Tilt Angles: 0 - 180°

  • Output: Relay (free of potential change-over contact)

  • Max. Contact Voltage: 42 VAC/VDC

  • Max. Contact Current: 1 A (resistive)

  • Max. Switching Power: 30 W (DC); 60 VA (AC)

  • Minimum Detection Speed: 2 in/s

  • Mains Frequency: 50-60 Hz

  • Supply Voltage: 12-24 VAC; +/-10%, 12-24 VDC; 30% / -10%

  • Power Consumption: < 2 W

  • Mounting Height: 6-1/2 - 11-1/2 feet

  • Dimensions: 3-3/4“ (W) x 4” (H) x 5” (L)

  • Material: ABS and Polycarbonate

  • Temperature Range -22 to 140°F

  • Degree of Protection: IP65

  • Norm Conformity:

    • EMC: 2004 / 108 / EC

    • R&TTE: 1999 / 5 / EC
