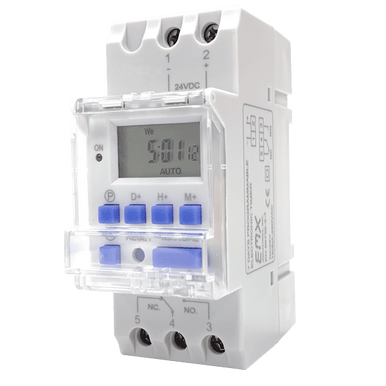

EMX PTM 7-Day Programmable Timer

SKU:
PTM-TIMER
Write a Review
  • Usually Ships Following Business Day
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

Get access to any facility at any time with EMX’s PTM 7 day timer. Equipped with a DIN rail mount, multiple power options, and battery backup, the device can be easily integrated into existing systems. Possible applications include timed entry for secure entry/exit, security alarm systems, magnetic door locks, and electric strikes. The PTM Timer can extend the use of your equipment by automating access times for parking barriers, gates, or overhead doors.

Highly Customizable

The PTM’s large display and push-buttons enable easy and versatile programming. Set up to 16 ON/OFF events per day with 15 different daily options for a configuration that works best for your job, home, garage door, gate, or commercial facility.

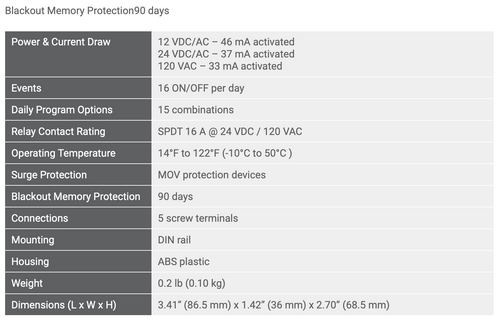

Product Specifications

  • Events: 16 ON/OFF per day

  • Daily Program Options: 15 combinations

  • Relay Contact Rating: SPDT 16 A at 24 VDC/120 VAC

  • Operating Temperature: 14°F to 122°F

  • Surge Protection: MOV protection devices

  • Blackout Memory Protection: 90 days

  • Connections: 5 screw terminals

  • Housing: ABS plastic

  • Weight: 0.2 lb.

Dimensions:

  • Length: 3.41 inches

  • Width: 1.42 inches

  • Height: 2.70 inches

Available Power Options:

  • 12 VDC/AC, 46 mA activated - PTM-12

  • 24 VDC/AC, 37 mA activated - PTM-24

  • 120 VAC, 33 mA activated - PTM-120
