EMX ULTRA-DIN DIN Rail Mount Vehicle Loop Detector

Write a Review
  • Usually Ships 4 to 7 Business Days

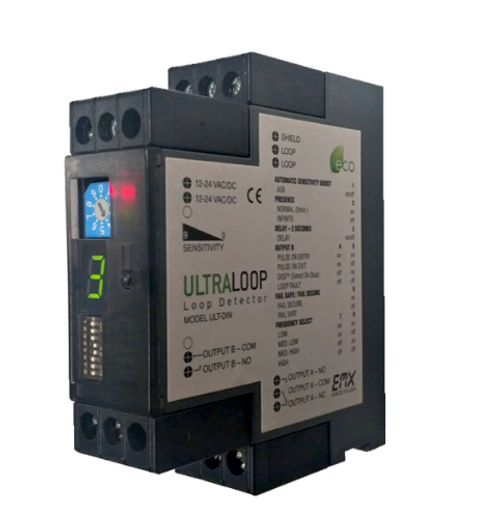

EMX’s ULTRA-DIN DIN rail mount vehicle loop detector. This compact loop detector in a DIN rail mount module fits into small operator housings, saving space, and has a low current draw for conserving energy. The ULT-DIN features DETECT-ON-STOP or (DOS) technology, which allows detection only when a vehicle has come to a complete stop on the loop. This exclusive feature is unique to EMX and is a major advantage for ignoring cross traffic in tight spaces.

The ULT-DIN provides relay contact outputs indicating vehicle presence and a set of output contacts for loop fault or pulse on entry/pulse on exit, or DETECT-ON-STOP. Easy to install and set up in any installation with the ULTRAMETER sensitivity display.


  • DIN rail mount vehicle loop detector

  • Ignores cross traffic in tight spaces with DETECT-ON-STOP feature

  • Easy to install and setup with the ULTRAMETER sensitivity display

  • Low current draw - green product

  • Easy identification of interference problems using the crosstalk and interference display

  • Fits into small operator housings, saving space

  • CE compliant

  • 4 operating frequencies

  • 10 sensitivity settings

  • 35mm width DIN rail mount

  • Small size: 80 x 23 x 84mm

  • Automatic sensitivity boost (ASB), delay, fail-safe/fail-secure and infinite or normal (5 min.) presence
