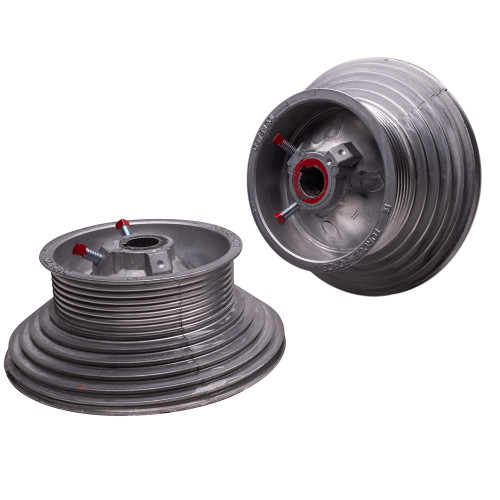

High Lift Cable Drum Set (120" hi lift) 22' Max Garage Door Height

Action Industries’ 120-inch High-Lift Garage Door Cable Drums provide reliable lift performance for professional high-lift applications. Designed for conversions and replacements, these drums support up to 500 pounds per drum and are engineered for systems using a 1" solid shaft with a 0.25" keyway. Each pair delivers consistent cable tracking and stable lift for doors up to 22' high.

Specifications

• For use with a 1" solid shaft with a 0.25" keyway
• Rated lifting capacity: 500 lbs per drum
• Maximum high lift: 120"
• Maximum door height: 22'
• Maximum cable diameter: 3/16"
• Sold by the pair

Formerly part # 5750-120 and D575H-22-H
