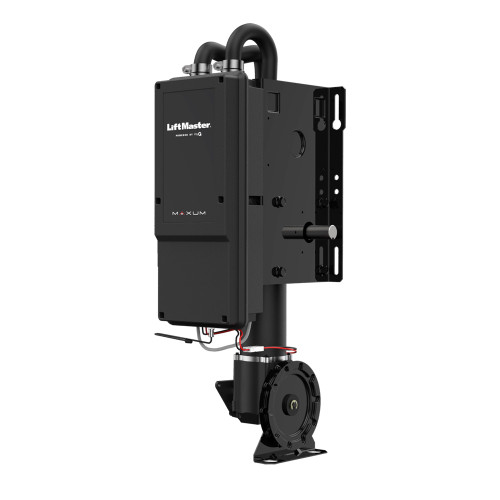

MAXUM JHDC Commercial Jackshaft Hoist Operator, DC Motor

Built for Pros Who Demand Speed, Smarts, and Simplicity

Designed with the installer in mind, the MAXUM Jackshaft Hoist DC operator delivers powerful performance, streamlined setup, and next-level diagnostics—so you can get in, get it done right, and move on to the next job faster.

Installer-Friendly Performance

• Smooth Start/Stop Operation
  High-efficiency DC motor with intelligent ramping reduces wear on the door and operator—less callback risk for you.

• Faster Door Speeds
  Open sectional doors at an average of 12”/sec and rolling steel at 8–9”/sec. Customers get speed; you get bragging rights.

• Battery Backup Ready
  Seamlessly integrates with an optional 7Ah backup kit for uninterrupted operation during outages (sold separately).

• Lightweight Design
  About 20 lbs. lighter than comparable Logic 5.0 operators. Balanced for easier lifts and faster mounting.

Simplified Setup & Smart Features

• Floor-Level Programming
  4-line LCD wall controller puts full system setup, diagnostics, and troubleshooting within arm’s reach—no ladders needed.

• Push-Terminal Wiring
  Color-coded push terminals eliminate the need for tools or wire nuts. Press, insert, release. Done.

• Wi-Fi Built In + myQ® Facility
  No extra hubs, dongles, or modules. Just connect and go. Easily link to the cloud for real-time monitoring, alerts, and user/device management.

• Advanced Diagnostics
  Forget blinking LED guesswork. The onboard LCD and connected interface tell you exactly what’s wrong—and how to fix it.

Safety & Compliance You Can Trust

• Triple Monitored Entrapment Inputs
  Complies with UL325 with inputs for up to three safety devices.

• Certified for North America
  Meets ANSI/CAN/UL325 for U.S. and Canada, and certified to NOM/IFETEL standards for Mexico.

Perfect for These Jobs

• Sectional Doors (Standard, High Lift, Full Vertical)

• Rolling Steel Doors and Grilles

• Jobs requiring hoist capability or battery backup

• Standard and Extended Duty applications (up to 150 cycles/day)

Quick Tech Specs

What’s in the Box

• DCWALLCTL – 4-Line LCD Floor-Level Wall Controller

• CPS-U – Monitored Through-Beam Photo Eye Kit

Warranty That Works for You

• Operator: 5 Years (Standard or Extended Duty rated)

• Wall Controller: 2 Years

• Photo Eyes & Battery Kit: 1 Year

• Parts: 1 Year

* Cycle count starts at install; warranty unaffected for first 2 years regardless of cycle total.
