LiftMaster K1D8389-1CCMC Main Board with Heat Sink

SKU:: K1D8389-1CCMC

Write a Review

Programmable control for nearly all operating specifications
Usually Ships Following Business Day

UPC:
availability:: available

Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

Product Description
Related Products

Product Description

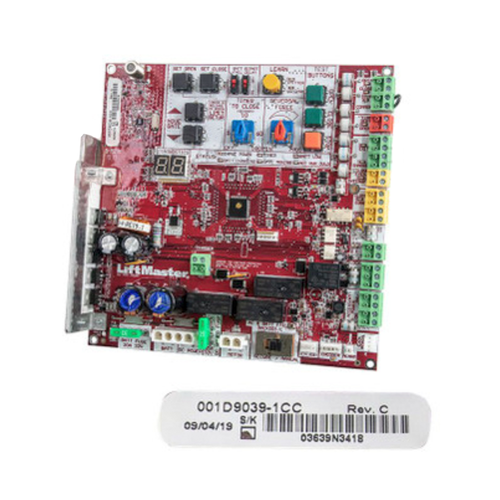

The LiftMaster K1D8389-1CC gate operator replacement main control board, complete with a built-in heat sink, is designed for pad-mounted operators. It is compatible with the LiftMaster RSW12U and CSW24U commercial swing gate operators made after 2016.

This programmable main board works with the LiftMaster RSL12U and CSL24U commercial slide gate operators manufactured after 2016. Built to meet UL325 safety standards, the board can be adjusted to control key operating functions, including photo eye safety sensors and automatic close/delay settings.

Product Highlights:

• Model: K1D8389-1CC
• Features: Integrated heat sink
• Compliance: UL325-certified
• Programmable Functions: Adjustable for photo eye safety sensors, close/delay settings, and other operating specifications
• Compatible Models: Post-2016 LiftMaster RSL12U and CSL24U slide gate operators, RSW12U and CSW24U swing gate operators

Dimensions:
• Length: 7-7/8 inches
• Width: 7-1/4 inches
• Depth: 2 inches

Harness Label: WARNING! Adapter harness needed only for models CSL24V, CSL24VH, CSW24VH.
