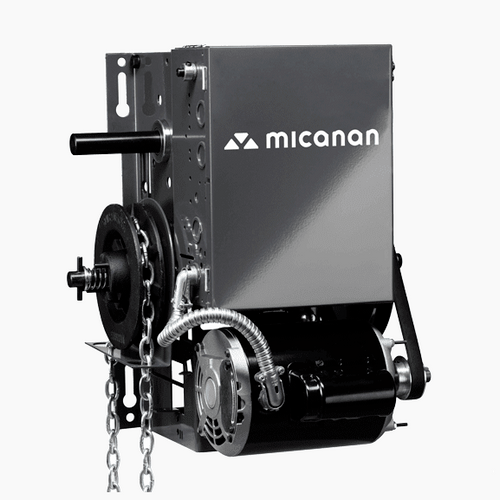

Micanan Pro-H Commercial Industrial Heavy Duty Hoist Garage Door Opener

The Micanan PRO-H Belt Drive Jackshaft Operator is built for continuous duty use on commercial and industrial doors. Designed for sectional doors with high-lift or vertical-lift track, as well as rolling doors and grilles, this unit provides dependable performance in demanding environments. The PRO-H features a continuous duty industrial motor, emergency chain hoist, adjustable friction clutch, and heavy-duty V-belt and roller chain drives, making it a reliable choice for large door applications.

Specifications

• 24V Class 2 control circuit with 40VA transformer for short circuit protection
• On-board receiver with antenna and external radio control terminal strip
• Powder metal limit cam nuts with fully adjustable rotary-type limit switch
• Three-button open/close/stop control station (NEMA-1 rated)
• Continuous duty industrial motor with overload protection
• Motor removable without affecting limit settings
• Heavy-duty 5L V-belt drive
• #41 roller chain and sprockets on internal drives; #50 on final drive
• Adjustable friction clutch with mechanical brake system
• Optional PRO-HB solenoid brake recommended for large doors
• 3/4” permanently lubricated and sealed precision ball bearings on pulley shaft
• 1” permanently lubricated and sealed ball bearings on final drive shaft
• Emergency chain hoist with electrical cut-out switch for manual operation
• Chain keeper for safe storage of hoist chain
• Left- or right-hand mounting (specify at time of order)
• N-1 Micanan photocells included (for doors up to 24’ wide)
• Baked-on dark gray coat finish
• Shipping weight: 100 lbs
