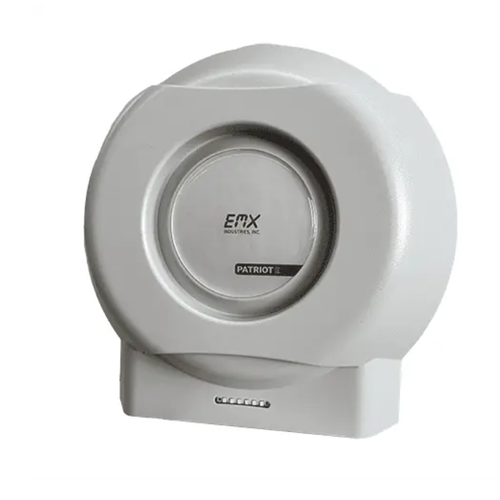

EMX Patriot-L Linear Polarized Long Rang UHF RFID Reader

The Patriot-L Access Control Reader offers versatile features for efficient access management. With a range of 18-25 feet (5.4-7.6 m), RS232 support, and compatibility with multiple Wiegand bit formats, it ensures reliable performance. LED indicators and relays enhance functionality, while variable 12 to 48VDC input voltage ensures flexibility.

What's Included:
- Reader
- Power Supply
- Mounting Bracket
- Test Tag

Adjustable Software Features:
- dBm levels
- LED timing
- Buzzer control
- Buffer and Wiegand timing
- Relay control
- Facility code isolation

Patriot-L Specs:
- Frequency: 902-928 MHz
- Max RF Power: 30dBm (1 Watt)
- Average Read Range: 18-25 feet
- Antenna: Linear 10dBi Gain
- LED Indicator: Yes
- Sounder Indicator: Yes
- Supply Voltage: 9-48VDC

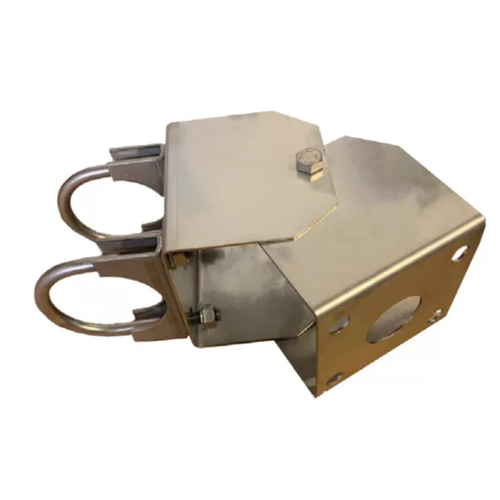

- Mounting Bracket: Included
- Adjustable Read Range: Yes
- Communication Options: Wiegand, RS-232, Relay Contact, RS-485/OSDP
- Extra Features: Store up to 500 Authorized Tag Numbers for access control without a door controller
- FCC Approval: Part 15
- Operational Temperature: -20°C to +70°C
- Size: 9.45" x 9.45" x 3.82"
- IP Rating: IP65
