Product Description

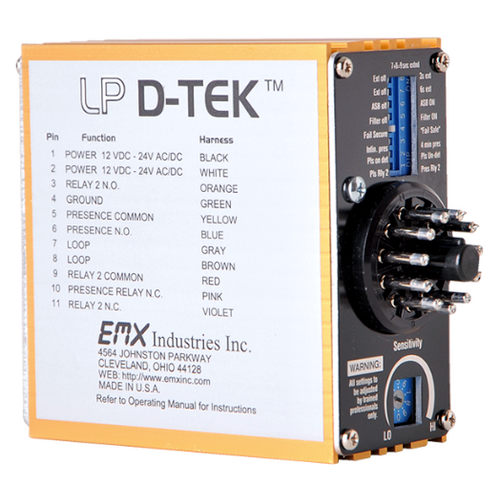

The LP D-TEK Low-Power Vehicle Loop Detector is engineered for installations where power consumption must be minimized without sacrificing detection reliability. With a low current draw of less than 9 mA, this unit is well-suited for solar-powered gate operators and systems with multiple connected accessories. Built with durable components and integrated diagnostics, it delivers stable performance in demanding field conditions.
Specifications
- Power input: 12 to 24 VAC/DC
- Low current consumption: < 9 mA (standby and detect)
- Fail safe and fail secure operating modes
- Dual relay outputs for flexible system integration
- Relay contact rating: 1A @ 30 VDC
- Loop inductance range: 20 to 2000 uH (Q-factor > 5)
- Automatic tuning on power-up or reset
- Automatic environmental tracking for consistent detection
- Transformer-isolated loop input with lightning and transient protection
- Built-in loop conditioner for stable operation
- Integrated loop diagnostics and frequency counter
- Enhanced surge protection with Zener diode / MOV
- Extruded anodized aluminum housing with aluminum RF shielding
- Operating temperature: -40°F to +180°F
- Dimensions: 3.25" H x 2.56" W x 3.65" L
- Connector: 86CP11, 11-pin male
