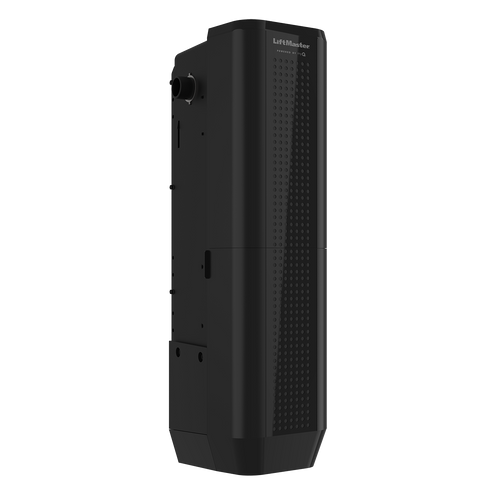

LiftMaster Residential Jackshaft Operator, Heavy Duty Elite, DC Motor

The LiftMaster 98032 Heavy-Duty Wall Mount Garage Door Opener is engineered for professional installers who need premium lifting power for today's largest residential garage doors. Featuring a high-torque 24V DC motor, commercial-grade drivetrain, and lifting capacity up to 1,100 lbs., this residential jackshaft opener delivers exceptional performance while freeing valuable ceiling space.

Designed exclusively for the LiftMaster Pro Channel, the 98032 combines ultra-quiet wall-mounted operation with built-in Wi-Fi, Bluetooth, myQ smartphone control, dual integrated battery backup, and an Automatic Garage Door Lock. The result is a premium wall mount garage door opener that provides strength, reliability, and advanced smart garage technology for demanding residential applications.

Professional Advantage

The LiftMaster 98032 gives dealers and installers a premium solution for oversized, custom, and heavy residential garage doors where traditional openers may fall short. Its commercial-grade drivetrain, 24V high-torque motor, electronic monitoring system, and dual battery backup help deliver dependable installations while creating opportunities to upsell homeowners who demand quiet operation, premium performance, and smart connectivity. Exclusive availability through the LiftMaster Pro Channel further differentiates your offering from retail alternatives.

Why Installers Choose the 98032

• Heavy-duty residential wall mount garage door opener.
• Designed for sectional doors weighing 400 lbs. to 1,100 lbs.
• Ideal for oversized, carriage house, custom wood, and insulated garage doors.
• Wall-mounted jackshaft design eliminates overhead rails and maximizes ceiling space.
• Excellent solution for garages with lifts, storage systems, or limited overhead clearance.
• Exclusive LiftMaster Pro Channel product.

Heavy-Duty Performance

• Dynamic 24V DC motor delivers exceptional lifting performance.
• Supports residential garage doors up to 1,100 lbs.
• Commercial-grade gearbox with bronze alloy gears.
• Peak motor output of 389 watts.
• Electronic monitoring system provides smooth, controlled door travel.
• Ultra-quiet operation minimizes vibration transferred throughout the home.
• Soft Start and Soft Stop technology reduces wear on the opener and door system.
• UL 325 certified for heavy-duty residential garage door applications.

Smart Garage Features

• Built-in Wi-Fi and Bluetooth connectivity.
• Compatible with the myQ Smart Garage platform.
• Monitor, open, close, and receive alerts from anywhere using the myQ® app.
• Built-in myQ Diagnostics supports connected troubleshooting.
• Compatible with up to 16 myQ Remote LED Lights.

Safety & Security

• Automatic Garage Door Lock deadbolts the door after every closing cycle.
• Dual integrated battery backup provides operation during power outages.
• Security+ 2.0 rolling-code technology helps prevent unauthorized access.
• Timer-to-Close automatically closes the garage door after a preset interval.
• Motion detector activates lighting when movement is detected.
• The Protector System safety sensors reverse the door when an obstruction is detected.

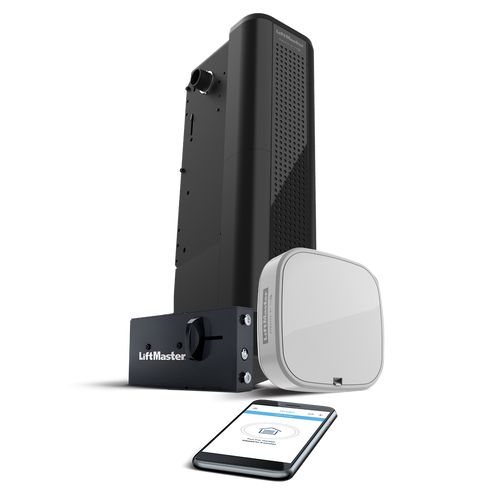

Included Accessories

• (2) 485LM Integrated Battery Backup Batteries
• 841LM Automatic Garage Door Lock
• L993M 3-Button Remote Control
• 880LMW Smart Control Panel®
• Remote LED Light

Compatible Optional Accessories

• VKP1-LM myQ Smart Garage Video Keypad
• LC36M Monitored Light Curtain
• 100MAPS External Power Supply

Specifications

• Model: LiftMaster 98032
• Series: Heavy-Duty Residential Jackshaft
• Opener Type: Wall Mount Jackshaft (RJO)
• Motor: 24V DC
• Peak Motor Output: 389 Watts
• Door Capacity: 400–1,100 lbs.
• Drive System: Commercial-grade gearbox with bronze alloy gears
• Connectivity: Built-in Wi-Fi and Bluetooth
• Smart Control: myQ Compatible
• Battery Backup: Dual integrated battery backup
• Lighting: Remote LED Light included; supports up to 16 remote lights
• Automatic Garage Door Lock: Included (supports up to two locks)
• Motion-Activated Lighting: Yes
• Soft Start / Stop: Yes
• Timer-to-Close: Yes
• Security: Security+ 2.0
• Diagnostics: myQ Diagnostics Enabled
• Certification: UL 325 Heavy-Duty Residential
• Application: Heavy residential sectional garage doors with torsion spring systems
