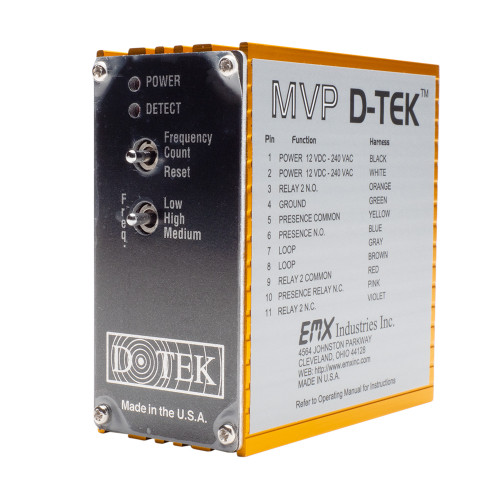

EMX MVP D-Tek Universal Loop Detector, 9V-220V AC/DC

The MVP D-TEK Multi-Voltage Vehicle Loop Detector is built for professional access control and gate system installations where voltage flexibility and dependable loop detection are critical. Designed to operate across a wide input range, this detector helps simplify field stocking while supporting reliable vehicle detection, advanced diagnostics, and stable performance in demanding environments.

Specifications

• Universal power input: 12 VDC to 240 VAC
• Multi-voltage operation supports 12 to 220 VAC/DC applications
• Selectable fail safe and fail secure operating modes
• 10 sensitivity settings for site-specific loop tuning
• Dual relay outputs: presence and pulse or presence
• Current consumption: 19.2 mA @ 9 VDC; 18.8 mA @ 12 VAC/DC; 17.3 mA @ 24 VAC; 9.5 mA @ 24 VDC; 13.5 mA @ 115 VAC; 11.0 mA @ 237 VAC
• Loop inductance range: 20 to 2000 uH
• Q-factor requirement: 5 or higher
• Automatic tuning on reset or power-up
• Automatic tracking adjusts for environmental changes
• Enhanced lightning and surge immunity with Zener diode / MOV protection
• Transformer-isolated loop input with lightning and transient protection
• Built-in loop conditioner for stable detection performance
• Loop diagnostics and frequency counter for troubleshooting and setup
• Gold-plated control contacts for dependable switching
• Extruded anodized aluminum housing with aluminum RF shield
• Operating temperature: -40°F to +180°F
• Dimensions: 3.25" H x 2.56" W x 3.65" L
• Connector: 86CP11, 11-pin male

Part Numbers

• EMX-2550-1 – MVP D-TEK Multi-Voltage Vehicle Loop Detector
