Linear

Linear MultiCode 1099 300 MHz Gate Receiver 110V

SKU:
MCS109920
Write a Review
Log in for pricing
  • Usually Ships Following Business Day
atc-product:
MCS308911
atc-product:
DC5200
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

Product Description

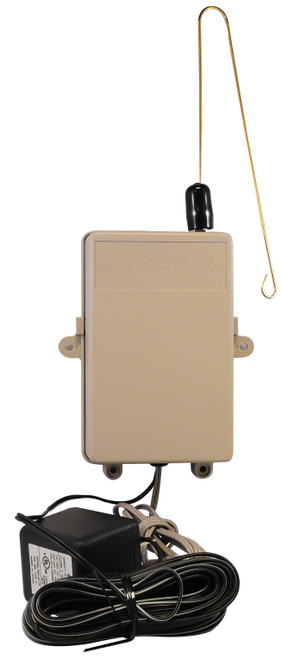

When you need strong signal reception, your choices are limited. Fortunately, the MCS109920 Multi-Code receiver is the perfect solution. Designed for use inside metal enclosures and other tough-to-penetrate enclosures, the MCS 109920 comes with an antenna and a coaxial connector. Operating on a 300 MHz frequency at 110 volts, this compact but extremely powerful receiver is the perfect addition to your security framework. The MCS109920 has 1,024 possible security codes that are set through DIP switches.

Features

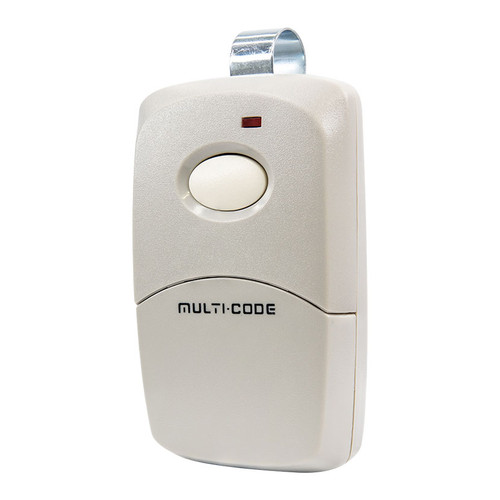

  • Compatible with several remotes

  • Up to 250 feet of range in clear line of site

  • 1,024 possible codes set by DIP switches

  • 1 amp output at 30 VAC maximum on relay contacts

  • 115 VAC transformer input included

  • Antenna and coaxial connector included

  • Designed for use in areas where signal transmission is difficult

  • Dimensions: 5.25 inches high, 3.625 inches wide, 1.5 inches deep

Related Products

Product Manual

MCS109920-MANUAL.pdf

Download Manual
!
