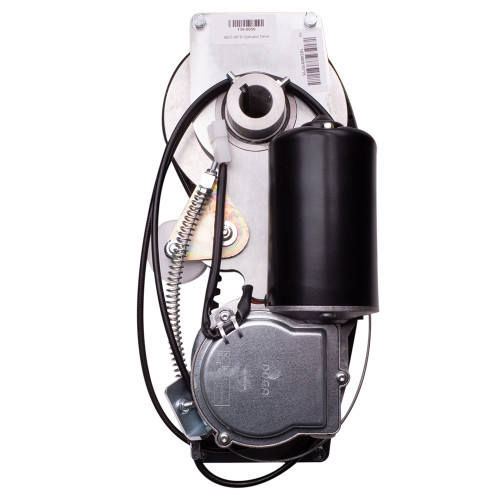

ZAP High Power Sectional Jackshaft Garage Door Opener - ZAP 8825-HP Series 3

Standard Features

• SafetySense™ Door safety monitoring system - The industry's most advanced sectional door monitoring system. It turns every edge of the door into a contact safety edge and also monitors the entire door system for unsafe operational and service conditions

• NEMA4 Motor drive system - Continuous duty, gear reduced DC Motor, for use in both normal and wet locations

• NEMA 4X rated controller case with push button controls - Provides a powerful soft start/ soft stop output of 650 Newtons of force to drive our commercial operator motor system. Designed for safety and convenience, it provides ground level serviceability to the operator control system and provides 3-button open/close/stop control to motor. It is desidned to accept either a 115VAC or 208-230VAC single phase power supply wired directly to the controller. A 24' low voltage motor cable is supplied for easy wiring of the motor. If used in a wet location, watertight connections are required on wiriing introduced into the controller

• Auto-Close Timer - Fully programmable auto-close timer. Requires photo cell.

• Prevent door operation interlock - Built in interlock to prevent door operation, used with truck restraint systems, shared track applications or pass doors.

• Manual Operation Release Lever - An easy to use manual override release lever is provided. When released it allows easy hand operation of the door. It provides ground level access to maintaining the operators drive belt adjustment

• Radio Control Connections - Wiring terminals are provided inside the controller for adding external radio control receivers from any desired manufacturer.

TECHNICAL SPECS:

• Controller Case Rating - NEMA 4X/IP66

• Controller Dimensions - 8.7"H X 10.6"W x 4.5"D

• Singel Phase Voltage - 115V US, 208-230V US, 208-230V EU

• Amp Draw - 5.8A

• Control Circuit Voltage - 6VDC

• Power Rating - 2000 Newtons Equiv. 1.5HP

• Operator Motor Head Rating - NEMA 4

• Motor Type - DC Gear Reduced

• Motor Cover Dimensions - N/A

• Motor Voltage - 48-54 VDC

• Limits Determination - Physical/ Self Calibrating

• Duty Cycle Rating - Continuous

• Operating Temp Range - -22 Deg F to 212 Deg F

• Overload Protection - Inherent motor current sensing

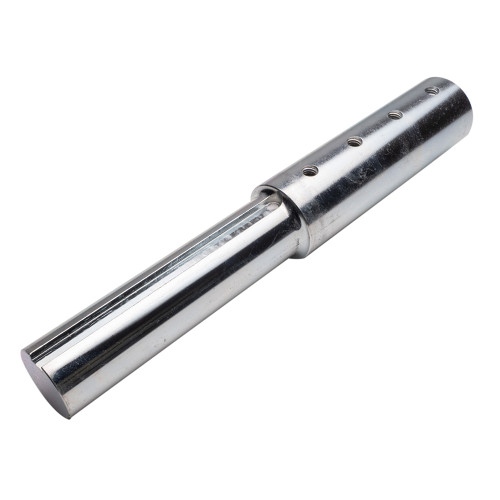

• Torsion Shaft Type Required - Solid w/keyway or hollow tube

• Fits torsion shafts diameter - 1"

• Torsion Shaft Lenght Required - 4.5" beyond outer edge of track

• Side clearance required - 5" min for motor only

• Replacement motor P/N - 600814

• Replacement Belt P/N/Size - PN600617 (AX29)
