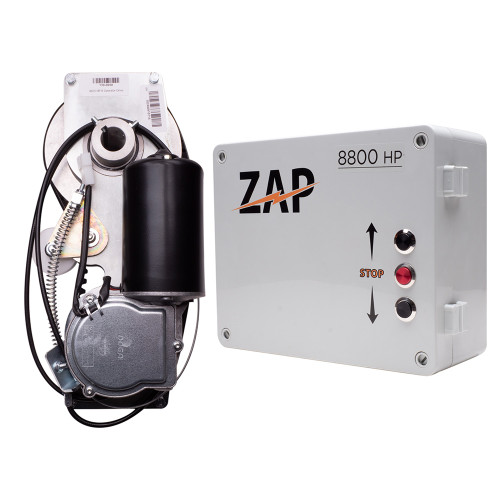

ZAP Medium Duty Jackshaft Sectional Garage Door Opener - 8825 Series 3

SKU:
8825-3
Write a Review
  • Usually Ships Following Business Day
availability:
available
  • Shipping Cost? For the cost of shipping your item please add the item into the shopping cart. Once the part is in the cart fill out address information in the cart under the Shipping area in the Summary section. Our system will then calculate the shipping fee based on your location and the weight of the product. This is all done before you are asked to provide payment information.

SAFETY:

  • NEMA 4X compliance for the controller as a standard feature

  • Compact size reduces potential for lifting injuries during installation

  • Universal torsion shaft mounting system reduces the potential for unsafe work practices during installation.

  • Fully adjustable automatic obstruction sensing system detects obstructions on any part of the door in the open or close direction while monitoring the entire door movement for unsafe operation or service conditions.

  • Inherent soft start-soft stop, safety stop-reverse eliminates the mechanical stress damage to the door when the door reverses

  • Self determining limit system prevents thrown cables from debris, ice, and snow left in the door opening

VALUE:

  • Continuous duty rated low voltage motor

  • Ultra-Quiet DC Motor, will not thermally overload.

  • No extra costs to have controller achieve NEMA 4/IP 66 rating.

  • Built in Service Due reminder may be activated to ensure regular maintenance based on cycles of usage

  • Fully programmable Timer-to-close

  • Built in interlock terminals to prevent door operation

  • Programmable mid-stop.

SIMPLICITY:

  • Simple one person installation that eliminate steel build ups, back hangs, welding, and specialty anchors.

  • Simplistic maintenance design concept.

  • PCB based system controller eliminates the cost of servicing electrical contactors, limit systems, and countless other parts.

  • When the operator emergency release lever is disengaged the door easily operates by hand.

  • Operates all lifts of sectional doors with counter-weights or torsion springs, including rear mount torsion.

  • Versatile sectional door application mounting. May be mounted vertically, horizon tally, upside down, inside the cable drum, remount torsion, all without requiring wall or ceiling mount.

  • Simple wiring configurations and accessory modules that eliminate external limit relays to achieve various interlock configurations.

STANDARD FEATURES:

  • Motor and controller Continuous duty rated DC Motor with controller, producing a powerful soft start/soft stop output of 1300 Newtons of farce to drive commercial rolling sheet doors while reducing mechanical impacts that cause premature wear of door components.

  • NEMA 4X rated controller case ZAP Controllers and push buttons are NEMA 4X compliant as a standard.

  • Drive reduction Worm drive gearbox & V-belt reduction drive with fioor level. adjustable belt tensioning /emergency release lever.

  • Wiring type C2 (factory default), B2 failsafe is standard with the addition of approved photo eye.

  • Terminal strip provided inside the controller to provide quick, convenient connections for adding external radio control receivers from any desired manufacturer.

  • Bearings and belts Drive systems use industrial grade bearings and automotive grade long Iife v-belts. Our simplistic service design concept allows simple service of components in a matter of moments.

  • Construction Heavy-duty 8-gauge electro-plate finish steel frame, industrial bearings, phosphor bronze worm drive gears, aluminum drive pulley, secured with key stock and set screw for simple servicing.

  • CONSTRUCTION: Heavy-duty 8-gauge electro-plate finish steel frame, industrial bearings, phoshor bronze worm drive gears, aluminum drive pulley, secured with key stock and set ,crew for simple servicing.

  • PUSH BUTTON STATION: Control unit acts as the standard 3-button station for open/close/stop functions. Controller may be mounted remotely up to 24 feet away from the operator, provided it is to be wired with other external control devices that are designed to function as the primary door controls. Power supply is wired directly to the controller not the motor. low voltage motor cable is supplied for easy wiring of the motor.

Lift

Low Headroom

Standard

High Lift to 54"

High Lift Above 54"

Vertical Lift

Door Size W X H

8'-14'W X 6'-14' H

8825-3-B

8825-3-B

8825-3-C

8825-3-D

8825-3-D

14'-20'W X 6'-12' H

8825-3-B

8825-3-B

8825-3-C

8825-3-D

8825-3-D

20'-24'W X 6'-10'H

8825-3-B

8825-3-B

8825-3-C

8825-3-D

8825-3-D

Sectional Doors Only
Please read the instructions fully or attend training online before installation.
Consult factory for door sizes beyond scope provided above.
The maximum door weight for sizes listed above 1200 Lbs.
The minimum door height is 6'.

SPECIFICATIONS:

  • CONTROLLER CASE/PUSH BUTTON – NEMA 4X/IP66

  • CONTROLLER DIMENSIONS – 8.7" H X 10.6" W X 4.5" D

  • SINGLE PHASE VOLTAGE – 115V US, 208-230V US, 230V EU

  • AMP DRAW – 3.2A

  • POWER RATING – 1300 Newtons equivalent to 1 HP

  • CONTROL CIRCUIT VOLTAGE – 6VDC

  • LIMITS DETERMINATION – Physical/Self Calibrating

  • DUTY CYCLE RATING – Continuous

  • OPERATING TEMP RANGE – -22 deg F to 212 deg F

  • OVERLOAD PROTECTION – Inherent motor current sensing

  • LUBRICATION – Permanent

  • TORQUE INFORMATION – 225Lbs/102kg: Max Torque 90Nm

  • TORSION SHAFT TYPE REQUIRED – Solid w/ keywy or hollow tube

  • TORSION SHAFT LENGTH REQUIRED – 4.5" beyond out edge of track

  • FITS TORSION SHAFTS DIAMETER – 1"

  • SIDE CLEARANCE REQUIRED – 4.25" for motor only

  • REPLACEMENT RED MOTOR P/N –

  • REPLACEMENT BELT SIZE –

    • 8825-B – AX25.5

    • 8825-C – AX27
