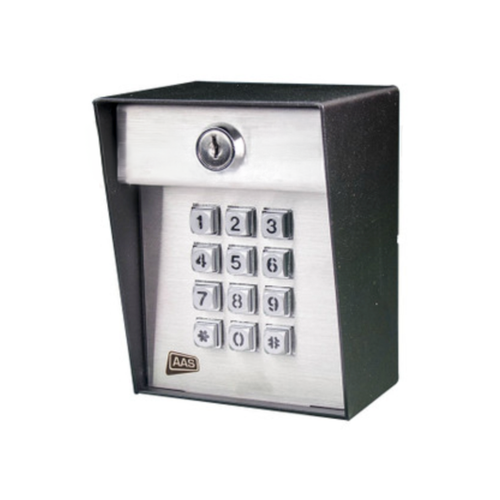

AAS Advantage DKE 26-500 Digital Keypad 500 Code Capacity by Security Brands Inc.

The Advantage DKE 26-500 keypad by Security Brands Inc. is a durable and economical access control solution designed for post-mount applications. Replacing the earlier 26-100L model, the updated unit offers an expanded 500 four-digit code capacity and a backlit keypad for improved visibility in low-light environments.

Key Features

• Supports up to 500 user codes
• Includes Personal Master Code and Latch Code
• Two programmable relays with variable relay time (1–999 seconds)
• Event input for enhanced access control flexibility
• Audible feedback tones during operation
• Non-volatile memory retains codes during power loss
• Illuminated keypad for night or low-light use

Construction & Design

Built for long-term durability, the Advantage DKE is manufactured with stainless steel and powder-coated steel housing. Compact in size, it measures 5-1/4" H x 4" W x 3" D and weighs 4 lbs.

Technical Specifications

• Input Voltage: 12–24 VAC/DC
• Current Draw:
  • Less than 17 mA @ 12 VDC (standby)
  • Less than 10 mA @ 24 VDC (standby)
  • Less than 41 mA @ 12 VDC (keypad lit)
  • Less than 22 mA @ 24 VDC (keypad lit)
• Relay Contact Rating: 1 A @ 24 V / 0.5 A @ 120 V
• Max Switching Voltage: 150 V / 220 V
• Max Carrying Current: 2 A
• Max Switching Power: 28 W / 60 VA
• Operating Temperature: -15°F to 175°F

Warranty

Backed by a two-year limited warranty for added reliability.
