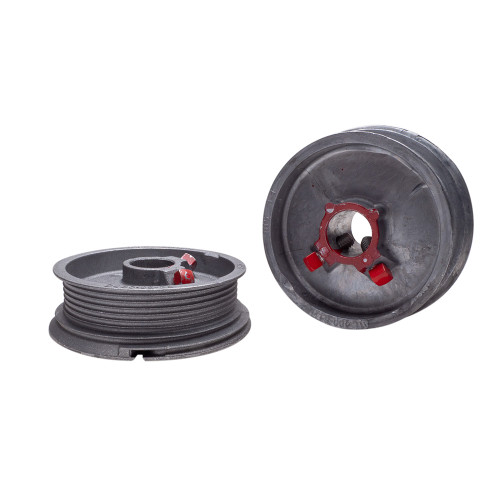

Standard Lift Drum Set - for 8' Max Door Height

The Garage Door Standard Lift Cable Drum Set is engineered for professional installation on standard lift residential garage doors. Designed for doors up to 8' 1" high, these drums feature a relatively flat groove profile that maintains consistent cable tracking throughout the door cycle. This design helps reduce cable slack and promotes smooth, controlled door operation in typical residential applications.

Sold as a matched left- and right-hand pair, each drum is rated to support up to 265 lbs and is compatible with 1" diameter tube shafts. The drums accommodate cables up to 1/8" in diameter, making them a reliable solution for most standard residential door systems.

Specifications

• Application: Standard lift residential garage doors
• Maximum door height: 8' 1"
• Rated lifting capacity: 265 lbs per drum
• Drum configuration: Matched left and right set
• Shaft compatibility: 1" diameter tube shaft
• Maximum cable diameter: 1/8"
• Groove design: Relatively flat profile for stable cable travel
• Use case: Smooth, consistent door operation in standard lift systems
• Old A-Tech part # DRUM8 and old Action part number D400S-08-H
