Miller Edge Phoenix Motion-Activated LED Alert System with Visilight LED

The Phoenix™ motion-activated LED alert system provides high-visibility safety signaling for motorized sectional and rolling steel doors. Designed for interior leading-edge mounting, the system uses an integrated accelerometer to automatically trigger bright Red, Amber, and Green LED patterns that clearly indicate door movement and status in high-traffic commercial environments.

Engineered for simplified installation and reduced maintenance, Phoenix™ operates independently of the door operator and utilizes inductive charging technology to eliminate coil cords and retracting reels. The plug-and-play system delivers up to 60 hours of runtime or approximately 100 door cycles per charge while integrating seamlessly with sensing edges, photo eyes, and light curtain systems.

Specifications

• Designed for motorized sectional and rolling steel doors
• Interior-mounted LED warning system for enhanced visibility
• Integrated accelerometer activates LEDs based on door motion
• Inductive charging pads eliminate coil cords and retracting reels
• Compatible with sensing edges, photo eyes, and light curtains
• Up to 60 hours runtime or approximately 100 door cycles per charge
• 18 tri-color LED lights per foot
• LED brightness: Red = 80 lumens/m, Green = 220 lumens/m
• LED lifespan rated for 30,000 hours
• Operating temperature range:
  • Charge: 32°F to 113°F
  • Discharge: -4°F to 140°F
• 3.7V 800 mAh lithium-ion receiver battery
• Input power supply: 100-240VAC, 50/60 Hz
• Output power supply: 5VDC, 1.5A
• Full inductive recharge in approximately 6-8 hours
• LED strip protected by UV-protected silicone sheath
• Mounting channels constructed from high-density Rigid PVC
• Power RX/TX enclosures constructed from Polycarbonate
• Mounting brackets constructed from Steel
• LED strip component rated IP65
• Power RX and TX enclosures rated NEMA 4
• Available for sectional and rolling steel door applications

Applications

• Motorized sectional doors
• Motorized rolling steel doors
• Warehouse and distribution facilities
• Commercial and industrial loading environments
• High-traffic interior door openings

Model Options

• LED-PHXSD-K8 – Sectional door kit for doors 8' and wider
• LED-PHXRS-K8 – Rolling steel door kit for openings 9' and wider

Kit Components

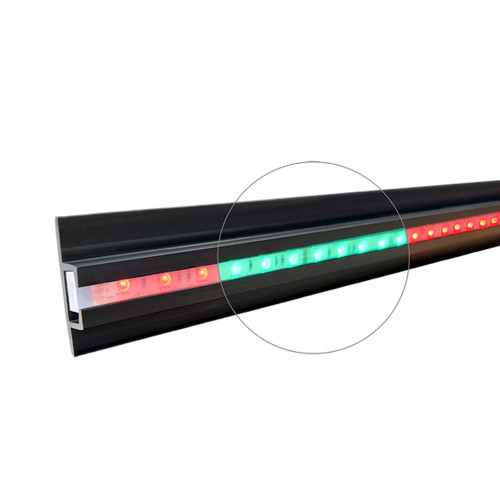

• LED light strip
• Universal mounting channels
• Rolling door bottom bar clips (rolling steel model)
• Receiver and transmitter inductive charging pads
• Mounting brackets
• Power RX and TX enclosures
