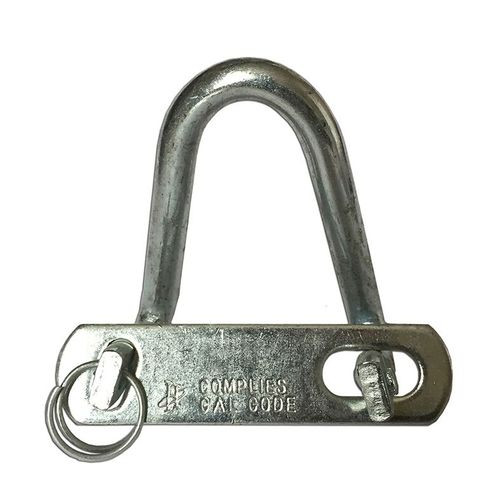

W-Hook for One Piece Garage Door Springs

Keep your One-Piece garage door springs working with replacement W-Hooks from Action Industries. Found on doors that require two springs on either side, these metal hooks attach to each end of the spring and hold it in place. This allows the spring to safely extend with the motion of the door. CW15 W-Hooks are designed to work with the E900-R One-Piece Door Hardware Kit.

Features:

• For use with Plug-End Springs P928, P728L, P728, P528, and P328

• One W-Hook installs on the kicker of the door, the other connects to the U-bolt

• Each double spring setup requires 1 pair of W-Hooks

• Used on single spring set ups for P-Series springs

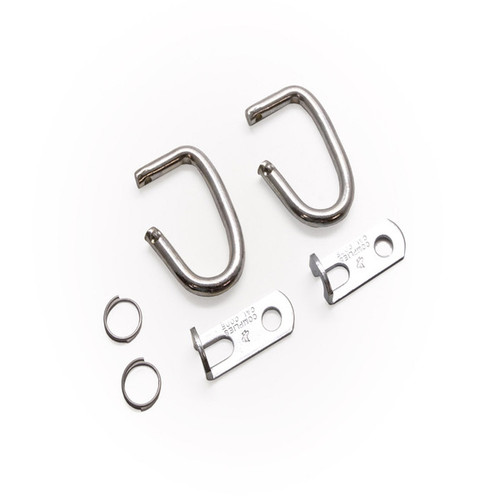

• Pack includes: 1 W-Hook, 1 L-Plate, and 1 Keeper Ring

How to Install:

1. Install “W” hook thru the U bolt

2. Install other hook over the lower bushing on kicker

3. Attach two springs to lower hook and add plate and keeper ring

4. Stretch spring to connect to the upper hook. Add plate and keeper ring

5. Repeat on opposite jamb
